VAX (Virtual Address eXtension) processor was developed by Digital Equipment Corporation (DEC) in 1977. It is a landmark in the history of computing and is widely known for its 32-bit instruction set and virtual memory capacity. Explore the intricacies of VAX processors, including their robust architecture, expansive instruction set, key features, and diverse use cases.

Understanding the Architecture of VAX Processors

VAX architecture is one of the significant examples of CISC architecture or Complex Instruction Set Computer design. It supports variable-length instructions ranging from 1 to 56 bytes. Its complex design enables VAX to carry out high-end performance operations seamlessly, necessary for the complex data manipulation tasks required for programming languages.

VAX processor combines a comprehensive instruction set with flexible data representation and complex memory management, making it a key player in the history of computing. Its design and ability to carry out complex operations while supporting different addressing modes and data types make it a strong computing platform.

What is Instruction Set Architecture (ISA)?

The VAX ISA comprises more than 300 instructions. Each instruction has its unique opcode (operation code) and operand configurations. These instructions comprise various functionalities, such as:

• Arithmetic Operations: This operation includes simple math functions like addition, subtraction, multiplication, and division.
• Logical Operation: This operation set includes AND, OR, NOT, and XOR functionalities
• Control Transfer: It comprises of the instructions required to manage the flow of executions like jumps, returns, and calls.
• Data Movement: This instruction set comprises the data movement between memory locations, registers, and I/O devices.
• System Management: This instruction set manages system resources like exceptions and interrupts.

The instruction length is in variable format, which enables seamless coding for complex operations, minimizing overall code structure and enhancing performance. This flexibility is the distinct characteristic of the VAX processor, enabling it to carry out multiple operations efficiently.

What is Memory Management in VAX CPU?

The VAX architecture comprises a complex virtual memory system that divides address space into four sections, each capable of handling 1 GB of memory. This categorization is essential for smooth memory management and process isolation in a multitasking ecosystem. This architecture focuses on elevating security and operational stability and supports both system space and users.

The VAX virtual memory system utilizes a two-level page table architecture. For fast address translation, the Page Table Base Register (PTBR) points toward the base of the present progress page table. By updating the PTBR, the operating system can switch between processes easily, improving the efficiency of memory management overall.

What are the Registers and Data Types in VAX CPU?

The architecture of VAX CPU consists of 16 general-purpose registers. Each of them is 32 bits wide and identified as R0 to R15. These registers are used for temporary data manipulation and storage and can be accessed using different addressing modes.

The different special-purpose registers complement general-purpose registers like:

• Program Counter (PC): The next instruction addresses that need to be executed are stored here.
• Stack Pointer (SP): This indicates the top of the present stack frame, which is required for local variable storage and functional calls.
• Frame Pointer (FP): It offers a reference point within the function for accessing local variables and parameters.

The VAX architecture supports multiple data types, like numbers, integers, characters, and floating-point numbers. They can be stored in a different format, ranging from bytes to octawords (16 bytes). This flexibility in application data representation requires a wide range of data handling capabilities.

What are the Data Formats in VAX Processor Architecture?

Here are the different types of data formats used in the VAX processor architecture:

• Integers: Stored in the form of binary numbers like byte, word, longword, quadword, and octaword.
• Characters: Characters are represented using 8-bit ASCII codes, allowing storage and text manipulation.
• Floating-Point Numbers: VAX processor architecture supports various floating-point formats, ranging from 4 to 16 bytes.

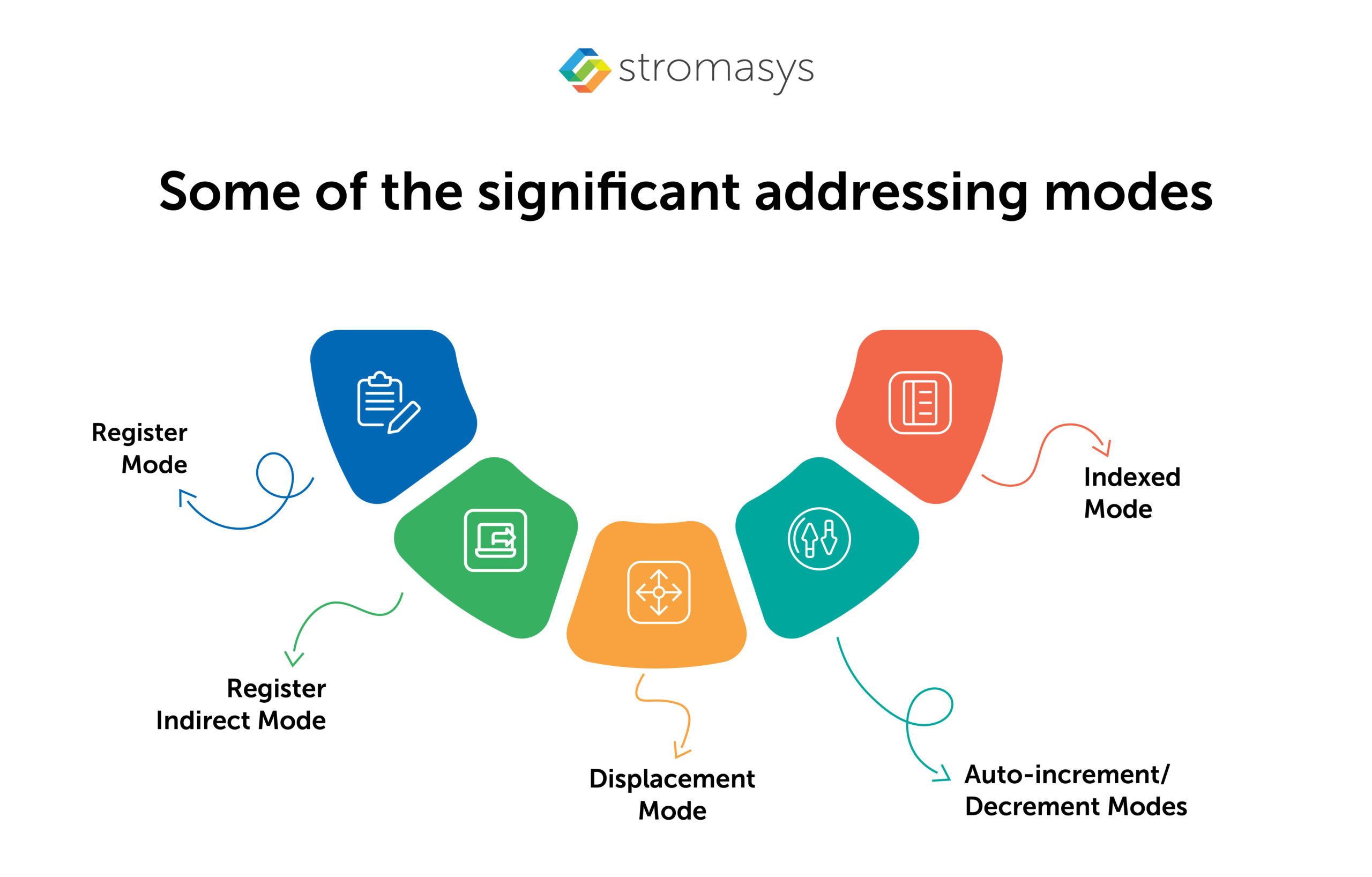

What are the Addressing Modes in VAX Processor Architecture?

The VAX processor architecture is well known for its extensive set of addressing modes, which offers flexibility in accessing data, making it suitable for complex operations. It enhances the architecture’s ability to handle various data access patterns efficiently. Here are some of the significant addressing modes:

• Register Mode: Has direct access to the data stored in registers.
• Register Indirect Mode: This mode utilizes the register to point to the memory address where the data is stored.
• Displacement Mode: To calculate the effective address, it combines a register value with an offset.
• Auto-increment/Decrement Modes: This functionality automatically adjusts register values when data is accessed, simplifying operations on arrays and lists.
• Indexed Mode: It enables adding an index register value to the base address to calculate the effective address. This functionality facilitates access to data structures like arrays.

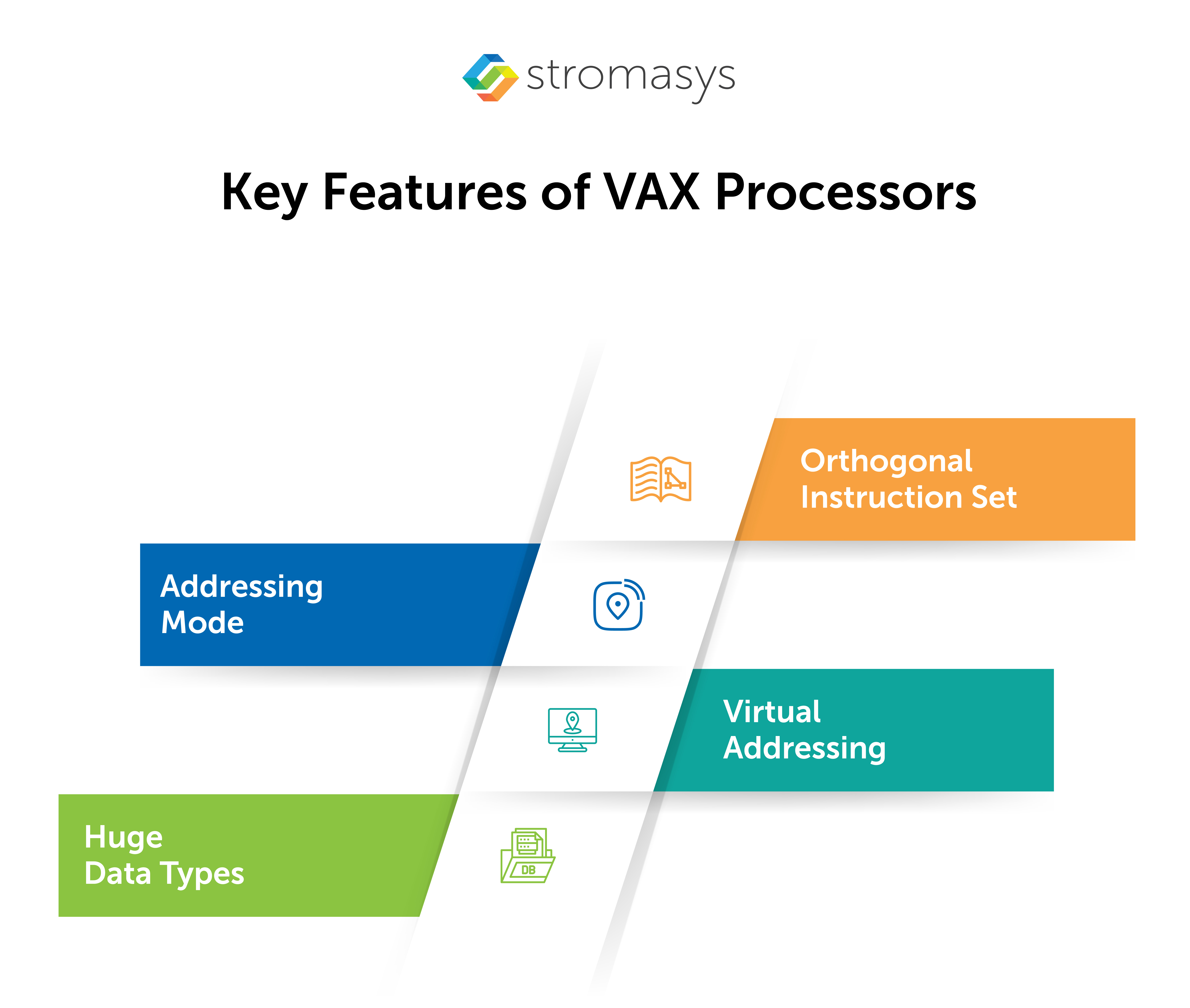

Key Features of VAX Processors

Here are some significant features of VAX processors:

Orthogonal Instruction Set

The orthogonal instruction design in VAX enables it to operate on any data type and addressing mode. This flexibility simplifies the compiler design and makes the assembly language easy to use.

Addressing Mode

It is one of the VAX CPU’s most significant features. The addressing mode offers greater flexibility for manipulating and accessing data, enabling seamless implementation of complex algorithms and data structures.

Virtual Addressing

The VAX CPU supported the 32-bit virtual address space, which facilitated the development of complex and large applications as it could easily manage large amounts of data and code effectively.

Huge Data Types

VAX processors support different data types, such as packed decimal numbers, integers, and floating points. This wide range of data support enables more efficient and precise computations, which are required mostly in engineering and scientific applications.

Industry Usage of VAX Processors

VAX processors are widely used in the following industries for their high-end computing, flexibility, and complex data handling:

Scientific Computing

VAX processors are well known for their high-end processing and support for complex mathematical operations abilities; therefore, they are widely used in engineering and scientific applications. This architecture is designed to manage large data sets and perform extensive calculations, making it a perfect choice for educational institutions and research centers. VAX processors deliver exceptional performance in operations like Computational Fluid Dynamics (CFD), Computer-Aided Design (CAD), and Finite Element Analysis (FEA). These critical applications are used in various areas, from aerodynamics and climate modeling to engineering design and complex system modeling.

The VAX’s architecture efficiently manages complex operations with efficiency and accuracy due to its support for high-precision floating-point arithmetic and large memory capacities. It enables significant advancements in analysis, design, and simulation across different disciplines, enhancing the VAX’s importance in scientific computing.

Business Applications

VAX processors are quite in demand in business ecosystems that have huge database management environments, automation, and ERP (Enterprise Resource Planning) applications. Their multitasking abilities and robust memory management enable the business to perform multiple operations simultaneously, thus improving productivity and efficiency. The reliability, scalability, and easy-to-use interface make them a popular computing platform.

Challenges of Legacy VAX Processors on Modern Business

VAX processors are the predecessors of the DEC Alpha servers and have had a lasting impact on computing history. Its advanced features, like virtual memory management, addressing modes, and orthogonal instruction set, have set a standard that continues to impact modern-day computer architecture.

Despite businesses moving towards modern technologies, some organizations still rely on legacy systems like VAX CPUs for their mission-critical operations. These processors have been an integral part of the infrastructure for a long time and are compatible with older applications, offering reliability and stability. For example, many government and military networks, specialized medical equipment, and industrial control systems rely heavily on VAX CPUs.

Though the VAX legacy systems enhance the business’s robustness, they prove to be very challenging when integrated with modern technologies.

The VAX processor is a complex instruction set that comprises over 300 instructions that are variable-length formats, making high-clock speeds challenging to achieve. Also, the heavy reliance on microcode complicates the execution of the pipeline and limits the instruction-level parallelism. These technical challenges make them increasingly difficult and economically unviable. Therefore, it can also be said that the complexity and compatibility, which were previously considered strengths of VAX CPUs, are now becoming constraints as they limit the factors that keep pace with the evolving new technologies.

Modernize Legacy VAX Processors with Stromasys Charon Solution

VAX CPUs are now fading into history, and businesses still relying on them face technical challenges. Stromasys Charon VAX offers solutions to modernize legacy VAX systems without sacrificing compatibility. It creates a virtual VAX environment on a standard x86 server. This not only reduces maintenance costs but also improves performance and reliability. The Charon solution extends the life of the legacy VAX architecture by migrating it to a modern platform, effectively bridging the gap between legacy systems and modern technology requirements.

If your business is also struggling with the legacy VAX architecture, don’t worry. Our experts at Stromasys will analyze your aging processor and help you with the best possible solution with minimal wait time.

Talk to an Expert

Frequently Asked Questions (FAQs)

1. What is the acronym for VAX, and when was it introduced?

VAX stands for Virtual Address eXtension, introduced in 1977 by DEC (Digital Equipment Corporation).

2. Which instruction set is used to design the VAX CPU?

The VAX processor follows CISC (Complex Instruction Set Computing) architecture design.

3. How large was the VAX instruction set?

The VAX instruction set comprises over 300 instructions in varied-length format.

4. What operating system was primarily used with VAX CPU?

The primary operating system for VAX was VMS (Virtual Memory System), which was later renamed as OpenVMS.

5. What data types are supported by the VAX architecture?

The VAX architecture supports different data types, such as integers in byte, word, longword, quadword, and octaword formats, 8-bit ASCII characters, and floating-point numbers in four formats ranging from 4 to 16 bytes.
